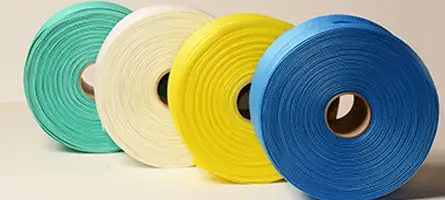

Woven Polyester Strapping

Cross wound coils core Ø 76mm x 150mm

Code	Width	Tensile Strength	Metres Per Coil	Coil Ømm	Buckle
E13	13mm	400kgs	1000	270	GT13/1000/box
E16	16mm	500kgs	750	260	GT16/1000/box
E19	19mm	600kgs	600	250	GT19/1000/box
E19/750	19mm	750kgs	500	240	GT19/1000/box
E19/1100	19mm	1100kgs	500	260	GT19/1000/box
E25L	25mm	950kgs	500	280	GT25/500/box
E25/1400	25mm	1400kgs	300	285	GT25/500/box
E32/1400	32mm	1400kgs	300	290	GT32/250/box

The L Range cross wound coils core Ø 76mm x 150mm

Code	Width	Tensile Strength	Metres Per Coil	Coil Ømm	Buckle
L13	13mm	375kgs	1100	300	GT13/1000/box
L16	16mm	450kgs	850	320	GT16/1000/box
L19	19mm	550kgs	600	290	GT19/1000/box

Ribbon wound coils core Ø 22mm

Code	Width	Tensile Strength	Metres Per Coil	Coil Ømm	Buckle
E25	25mm	1400kgs	200	585	GT25/500/box
E32	32mm	1400kgs	200	585	GT32/500/box
E32/2500	32mm	2500kgs	150	440	GT32/250/box
E38	38mm	2000kgs	100	385	GT38/125/box

What Is And Why Woven Polyester Strapping?

Like your seatbelts it is a woven polyester webbing where the warp cords that bear the load are woven together with the weft cords that bind the whole strapping together giving a complete structure so unlike other corded strapping it does not separate down its length.

The Benefits Of Using Woven Polyester Strapping

As an alternative to steel banding it has the following benefits.

Being flexible it is easy to use in all weathers
It will not stain or scratch treated surfaces
Easily hand applied using our simple low
cost tools
It has the strength of steel with only a fraction of its weight and is
easily disposed of
It has no sharp edges and ends to harm personnel or products
It can be retensioned if the load is reduced in size in any way
It can absorb shock and retain its tension during transportation
It can retain its tension for extended time periods in all weather

It has excellent resistance to UV degradation and is impervious to most chemical attack

Why Choose Woven Polyester Strapping?

Cost Effective
As Strong As Steel
Can Be Tightened By Means Of Hand Tools When Under Tension
Will Not Stain Or Damage Loads Or Packages
Weighs 84% Less Than Steel Alternative
Polyester Weave Ensures Integrity
No Sharp Edges Or Corners
Maintains Tension
Easily Disposable
Will Not Rust
Can Be Retensioned

Uses & Applications Of Woven Polyester Strapping

With its incredible strength and versatility, our woven polyester strapping is used by a comprehensive range of individuals and businesses across many industries. Perfect for securing heavy loads, our cost effective strapping system has many applications.

Some Applications And Uses For Woven Polyester Strapping:

The bundling of scaffolding tubes and boards
Cargo restraints inside sea containers
Bundling pipes and tubes
Forestry and fencing products
Sawmills and timber treatment centres
Structural engineering projects
Securing double glazed sealed units for transportation
